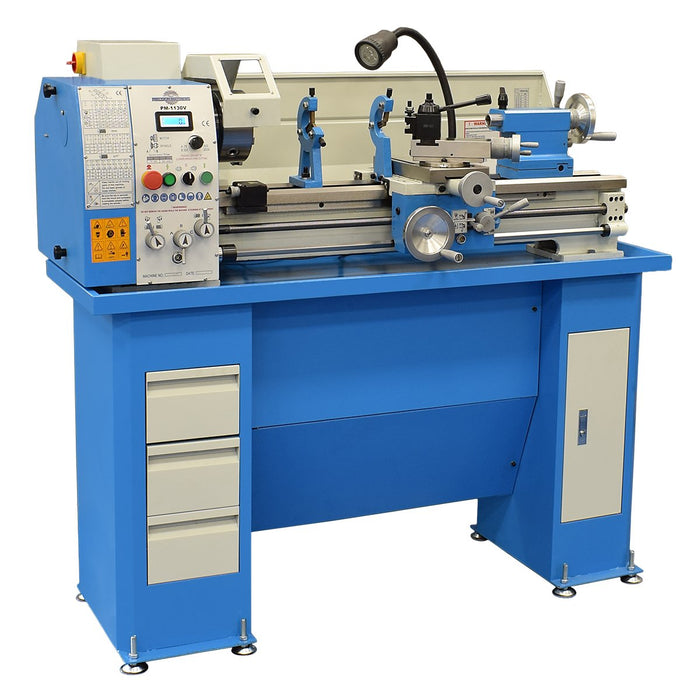

PM-1130V 11"x30" Precision Lathe

PM-1130V 11"x30" Precision Lathe

$4,299.00 - $4,799.00
$4,299.00
$4,299.00 - $4,799.00
$4,299.00
  • D1-4 Camlock Spindle Mount Now Standard
  • Large 1-1/2" Spindle Bore
  • AXA Wedge Type Quick Change Tool Post set included, installed, ready for use
  • Variable Spindle Speeds by reliable AC Inverter (VFD) Drive
  • Super Smooth and Quiet Running Machine
  • Lead screws Are True Inch Pitch Screws (Not Metric Conversions Like Many), 10 Threads Per Inch (.100” Per Turn) on Cross Slide, Compound Slide, and Tailstock for easy Inch measurement readings
  • Backed by an industry leading 3 year warranty
  • Click here to see Details and Specifications below

$249 Flat Rate Shipping in the 48 US States – Any accessories ordered with machine at the same time also ship free of charge! (Will automatically calculate at checkout)

Liftgate Delivery is $79 per shipment and can be added at checkout, if needed.

Availability:
Available on Backorder
Availability:
In stock
SKU PM-1130V-w/PKG

Lead times for NEW orders as of 4/18/25:
-If showing IN STOCK when model is selected in the "Choose Machine Option" dropdown, that machine model is in our warehouse and available for shipment.
-If showing Available On Backorder, the next available shipment ETA's are listed below:
*PM-1130V-w/PKG - ETA EARLY-MID MAY 2025
*PM-1130V-w/PKG-w/2axDRO - WILL UPDATE NEXT SHIPMENT ETA ONCE CURRENT STOCK SELLS OUT
NOTE: If machine is in stock, you will be charged in full at time of placement, no matter if ordered through our website, email, or over the phone.
-If machine is on backorder and ordered through our website, you will be charged in full at checkout.
-If machine is on backorder and ordered through email or over the phone, you can pay in full or you can place a minimum 20% Deposit Payment of the order's total at time of placement.

PM-1130V Main Features

  • D1-4 Camlock Spindle Mount
  • Large 1-1/2" Spindle Bore
  • Made in an ISO 9002 Certified Factory
  • High Quality Electronics Used Throughout Machine for long term reliability
  • POWER CROSS FEED, BOTH IN, OUT, and LEFT and RIGHT, and WILL CUT
  • LEFT HAND THREADS TOO
  • Super Smooth and Quiet running machine
  • Heavy Duty Bed Width 7" (same width as most 12"x36" Machines)
  • Variable Speed 120 Volt Single Phase Input Power, 1.5HP Main Motor, AC Inverter Drive
  • Variable Spindle Speeds From 75-2000 rpm (2 Ranges, Low 75-500 RPM for more torque, and High 300-2000 RPM for more speed)
  • Inch Threads and Metric Threading, Both Right and Left Hand Threading
  • Spindle is Dynamically Balanced, Hardened and Precision Ground
  • Spindle is Supported by High Precision, Class 5, Adjustable Tapered Roller Bearings
  • All Gears and Shafts are Hardened and Precision Ground
  • Guideways Induction Hardened and Precision Ground for long life
  • REAL INCH LEADSCREW AND FEED SCREWS for even, easy measurements, No Metric Conversions like with many others out there

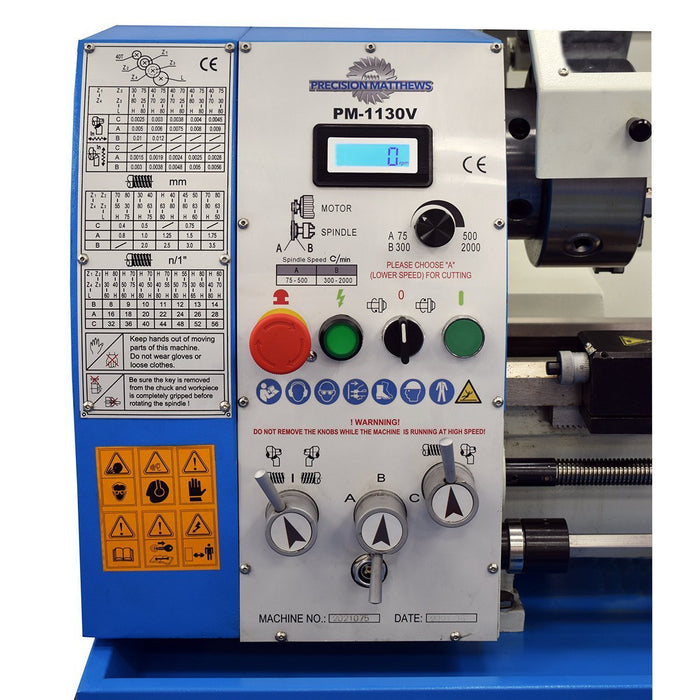

  • Digital Speed Readout Tachometer on face of machine
  • 3 Year Warranty - Best in the industry!

PM-1130V Standard Accessories

  • 6" 3 Jaw Chuck, Scroll Type, D1-4 Mount w/Inside and Outside jaws
  • Wedge Type Quick Change Tool Post, with 5 Holders (AXA/100 size)
  • Face Plate, D1-4 Mount
  • Steady Rest
  • Follow Rest

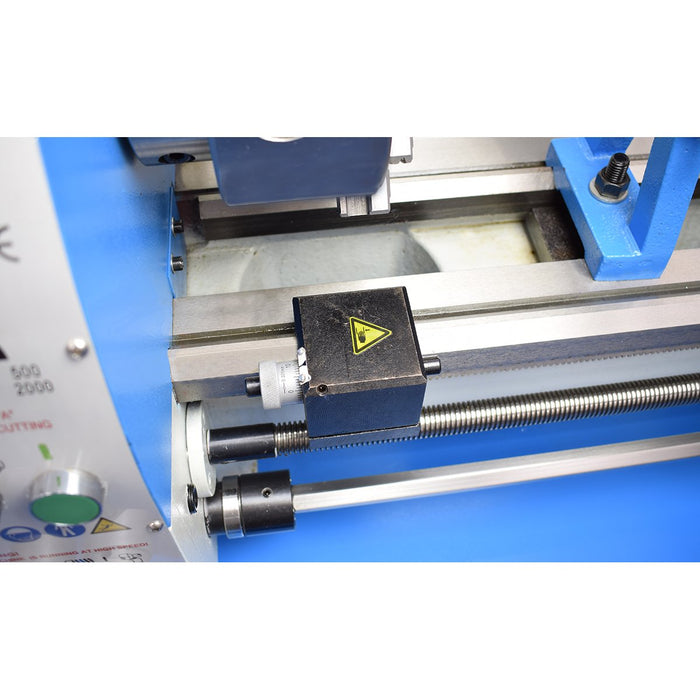

  • Micro Carriage Stop
  • Inch and Metric Threading
  • Thread Chasing Dial
  • Headstock Dead Center
  • Tailstock Dead Center
  • Misc. Tools for operation (Wrenches, etc)
  • Variable Spindle Speeds, 1.5HP Motor
  • Power Cross Feed, In, Out, Left, and Right Feed
  • Left Hand thread cutting with the flip of a lever
  • Large 1-1/2" Spindle Bore
  • 3 Year Warranty

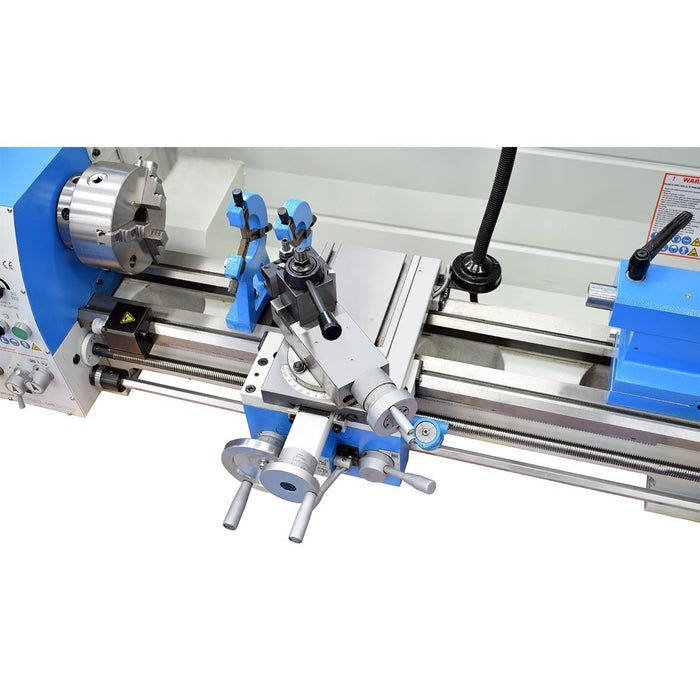

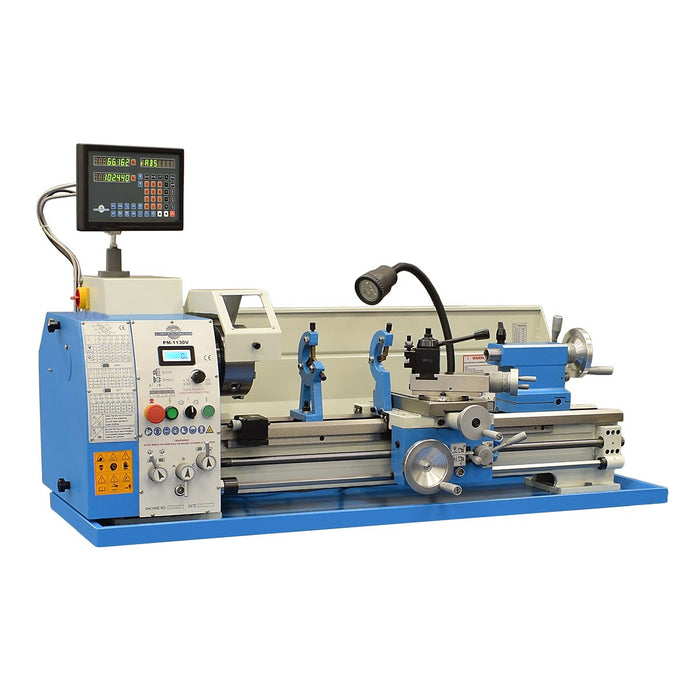

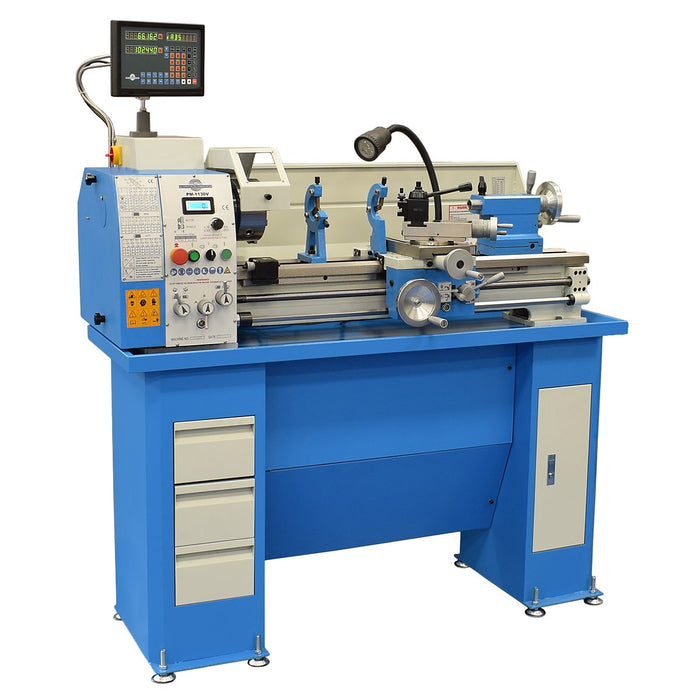

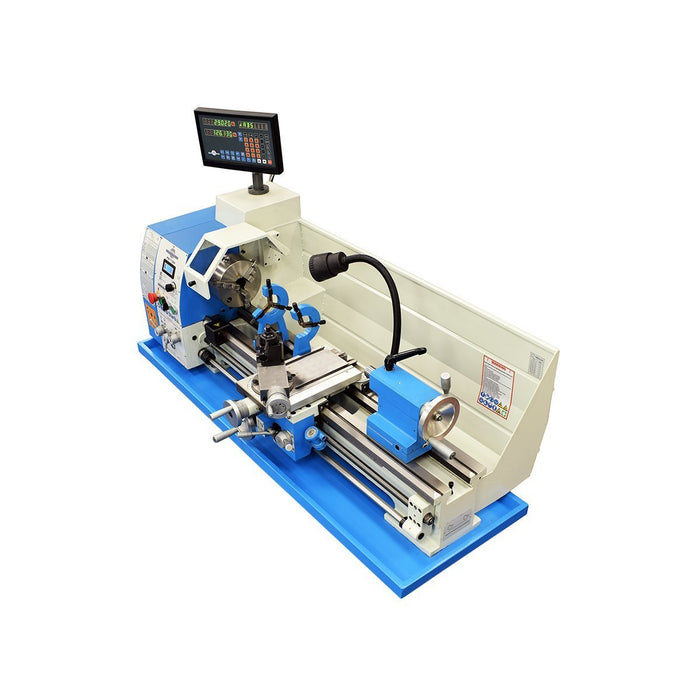

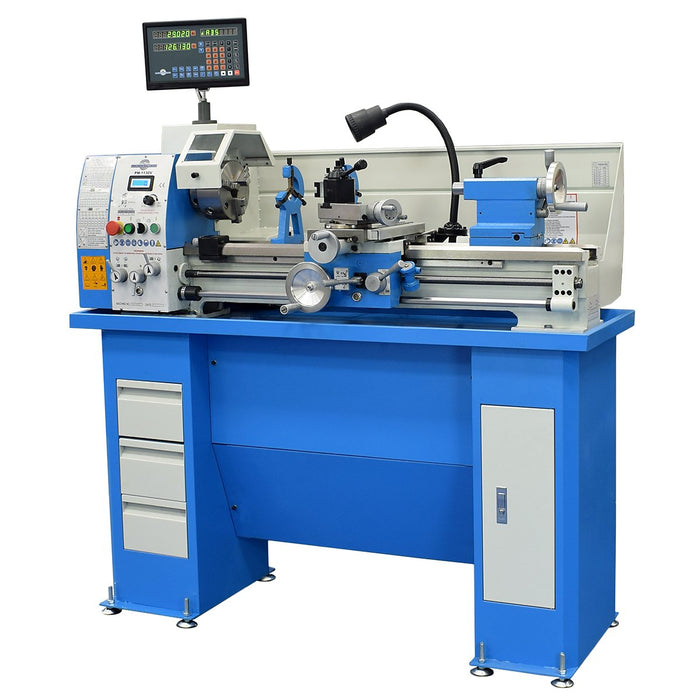

OPTIONAL DRO model shown below (This is included only if the model with DRO Installed is selected):

Main Specifications

Compound Leadscrew Pitch 10 TPI
Cross-slide Leadscrew Pitch 10 TPI
Bed Width
Front-to-back width of lathe bed
7 in
Distance Between Centers
Maximum distance between centers
30"
Quill Tailstock Taper
Taper of the tailstock quill.
MT3
Spindle Bore Diameter
Diameter of Spindle Bore, maximum diameter of through-spindle workpiece, in inches
1.5"
Spindle Centerline to Floor
Distance between the centerline of spindle and the floor, using PM base, in inches
13.5 in
Swing over bed
Maximum diameter of workpiece that can clear bed, in inches
11 in
Main (Threading) Leadscrew Pitch 8 TPI
PM Stand Height
Height of Precision Matthews Stand
31"
Spindle Mount Type
Mounting system for spindle.
D1-4 Camlock
Tailstock Leadscrew Pitch 10 TPI
Chip Tray Dimensions 57" W x 17.75" D

Travels

Compound Travel
Maximum travel of compound (top slide), in inches
3 in
Cross-Slide Travel
Maximum pure Y-axis, in-and-out travel of the cross-slide on the saddle, in inches.
6 in
Quill Travel
Maximum extension of quill, in inches.
4 in

Table

DRO Specifications

Power Requirements

Amperage
Minimum Breaker/Circuit/Outlet size required for product
12A
Voltage
Voltage Rating
110V
Phase
Phase type of line power supply
1Φ
Power Frequency
Power line frequency compatibility, in Hz
60Hz
Horsepower
Power output of motor, in HP
1.5
Plug supplied
Type of electrical plug or connection
NEMA 5-15P on ~5' cord

Motor and Drive

Motor Type
Type of Motor
AC with Variable Frequency Drive
Drive Type
Drive mechanism to transfer motor power to spindle
Belt Drive
Speed Adjustment
How the speed is adjusted.
Infinitely Variable
Spindle Minimum Speed
Minimum Speed of the Spindle, in RPM
75
Spindle Maximum Speed
Maximum Speed of the Spindle, in RPM
2,000

Cutting Capacities

Longitudinal Feed Rate Range
X-axis, left or right movement of saddle per revolution of spindle, in inches.
0.0025-0.012 IPR
Cross-slide Feed Rate Range
Y-axis, in or out movement of cross-slide per revolution of spindle, in inches.
0.001-0.0056 IPR
Inch Threads
Thread cutting capability for imperial threads.
Choice of 21, 8-56 TPI (8,9,10,11,12,13,14,16,18,20,22,24,26,28,32,36,40,44,48,52,56 TPI)
Metric Threads
Threading capability for metric threads
0.5-3mm pitch

Unit Dimensions

Unit Length
Length of product in packaging, in inches
60 in
Unit Width
Width of product in packaging, in inches
29 in
Unit Height
Height of product in packaging, in inches
27 in
Unit Weight
Gross Weight of product in packaging, in lbs
515 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
63 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
32 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
32 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
670 lb
Liftgate Eligible
Is this product suitable or eligible for Liftgate Delivery Service?
Yes
HS Code
Harmonized System Code for customs and tariffs
8458.19
Country of Origin
Primary Country of Manufacturing Origin
China

Machine Footprint

Footprint Depth
Minimum Front-to-Back space needed for clearance of machine, in inches
28 in
Footprint Width X-Axis
Minimum Left-to-Right space needed for clearance of machine, in inches.
61 in
Footprint Height
Minimum floor-to-ceiling space for clearance of machine, in inches.
21 in
All small accessories ordered with machine ship at no extra charge!

Machine ships LTL Truck Freight at a flat rate of $249 in the 48 States. Shipments to Hawaii, Alaska, Puerto Rico, or internationally need to be quoted by our Sales Team.

Shipping weight is approx. 670 pounds, and ships fully crated, approx. 28"W x22"H x 55"L on a 63"x32" skid. Stand adds 16" to height.

Flat Rate Shipping

Standard Flat Rate LTL Freight Shipping services involve a 28′-48′ tractor trailer pulling up in front of your driveway and unloading your order at the curb. This is the extent of our flat rate shipping services. Carriers will NOT back their truck up your driveway, drive their truck down a dead end street, or use their liftgate to offload your machine into the bed of your pickup or trailer. Unless you have a loading dock, forklift, material handler, or other heavy equipment with forks, you will need to add Liftgate Service for $79.

Liftgate Service (Optional)

Liftgate Delivery service will get the machine from the back of the carriers truck down to the ground and up to 25' from that offloading point, provided those 25' are paved, level, and manageable by a single person with an unpowered pallet jack. If your shop/garage threshold is more than 25' from the curb end of your driveway and you don't have your own pallet jack, you will need to add Inside Delivery Service.

You MUST have a plan for how to get your machine from the curb to your shop. If you need additional delivery services, like Inside Delivery, box truck, or flatbed with forklift delivery (available in select locations), please contact us prior to your order being shipped to allow us to arrange and charge shipping accordingly. Some, but not all carriers and locations have 26′ box trucks available, but that is not guaranteed and your delivery plan should not depend on getting a box truck.

Inside Delivery Service (Optional)

The Inside Delivery option will, in appropriate situations, cause the driver to take your freight from the offloading point at the liftgate and move it into your shop or garage, as long as the route between those two points is relatively level, paved, and manageable using a standard pallet jack. This is for flat, paved driveways that are over ~30' from the curb to the threshold of your shop/garage.

Delivery Appointment

If you need the freight carrier to call you to schedule a delivery appointment after the machine arrives at their final terminal, but before attempting delivery of your machine, you will need to request a Delivery Appointment. This is most useful if/when you need to rent a forklift or take off work. This will add 1 day to your shipping time. Scheduling a Delivery Appointment more than 2 days from the date the freight arrives at your local terminal may incur daily storages charges that the customer will be responsible for.

Click Here for Manual: PM-1130V V1.1 2023-05

Click Here for Optional DRO Manual: PM Lathe DRO Manual 7-30-2019 V.1

Click Here for Optional DRO Setup: Setting Up Precision Matthews Lathe DRO

If the machine will not start, be sure that the belt cover is on, and the safety switch on the cover is properly engaged
