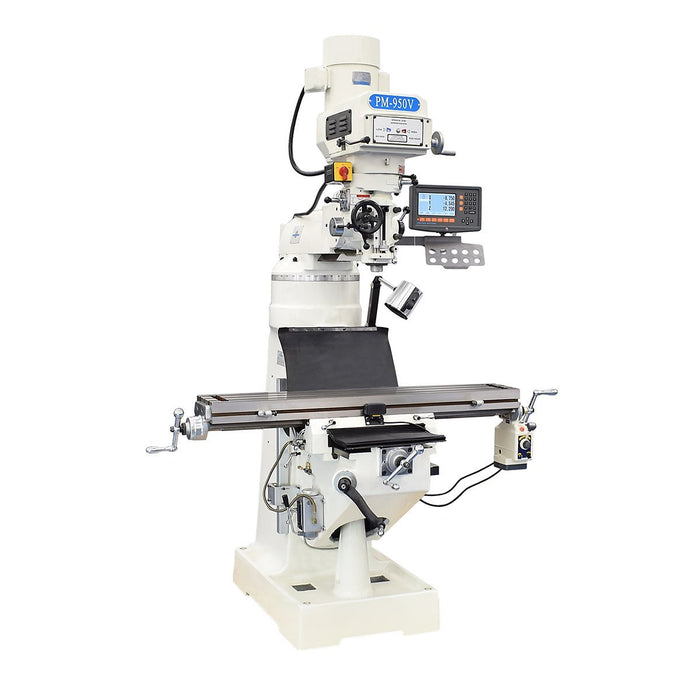

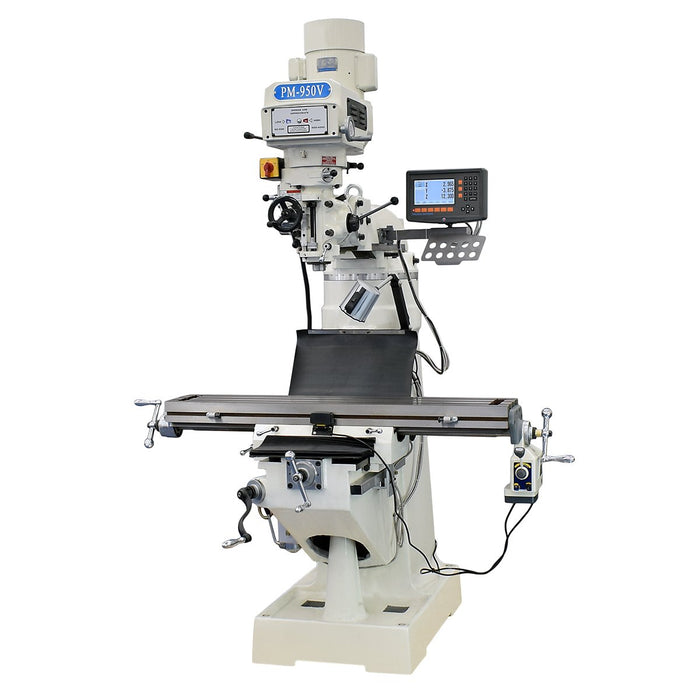

PM-950S / PM-950V Milling Machines

PM-950S / PM-950V Milling Machines

Sold out
$8,399.00 - $9,999.00
$9,999.00
$8,399.00 - $9,999.00
$9,999.00
  • Available in 220V Single Phase, Or 3 Phase Power To Suit Buyer's Needs
  • 3 Axis Full Featured DRO Included (.0002" Accuracy)
  • X Axis Power Feed Included
  • LED Work Light Included
  • One Shot Lube System Included
  • Way Covers Included
  • High Quality, Full Featured, Yet Economically Priced Milling Machine
  • 3 Year Warranty
  • Click here to see Details and Specifications below

$799 Flat Rate Shipping in the 48 US States (This cost includes a heavy duty skid and full heavy duty protective crating) – Any accessories ordered with machine at the same time also ship free of charge! (Will automatically calculate at checkout)

Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
SKU PM-950V-1PH

Lead times for NEW orders as of 4/18/25:
-If showing IN STOCK when model is selected in the "Choose Machine Option" dropdown, that machine model is in our warehouse and available for shipment.
-If showing Available On Backorder, the next available shipment ETA's are listed below:
*PM-950S-3PH - ETA UNKNOWN AT THIS TIME
*PM-950V-1PH - ETA UNKNOWN AT THIS TIME
*PM-950V-3PH - ETA UNKNOWN AT THIS TIME
NOTE: If machine is in stock, you will be charged in full at time of placement, no matter if ordered through our website, email, or over the phone.
-If machine is on backorder and ordered through our website, you will be charged in full at checkout.
-If machine is on backorder and ordered through email or over the phone, you can pay in full or you can place a minimum 20% Deposit Payment of the order's total at time of placement.

Standard Accessories:

  • PM-950 Milling Machine
  • 3 axis Precision Matthews LCD DRO, Installed (3rd axis on knee travel)
  • X Axis Power Feed
  • LED Work Light
  • Way Covers
  • One Shot Lube Pump for ways
  • Power Down/Up Feed On Quill for boring
  • Hard Chromed Quill for longer life
  • R8 Spindle Taper

PM-950S / PM-950V Main Features:

  • High Grade Meehanite Castings, High Grade of Cast Iron, Meehanite / Grade 250 (FC250/HT250) Cast Iron, ribbed for rigidity and strength. - Be sure to ask if comparing.
  • Available in either Single Phase to run on standard 220V Power, or 3 Phase for industrial use, your choice (Please specify when ordering)
  • Entire Milling Head and Main Motor are made in Taiwan - only very high quality units used on these machines, while the body is made in China for cost savings.
  • Hardened and Ground table and way surfaces greatly reduces wear, which maintains accuracy, and greatly extends machine life - Box Ways on Y axis means more surface area, and more rigidity.
  • Massive 20" Wide Saddle for extra table support
  • Turcite B way material on X and Y Axis for smoother table movements and longer machine life – compare with others, you will notice the feel right away in the table handles.
  • Head Swivels Left and Right, AND Tilts Front To Back
  • One Shot Lubrication system is standard equipment, which also extends machine life, and reduces oiling times of all way surfaces and lead screws to seconds, it is accomplished by simply pumping a lever.
  • High precision Inch Pitch lead screws, for ease of use and greater accuracy (5TPI Screws)
  • High Precision Spindle with +/- .00015” or less runout for greater tool life and accuracy
  • Balanced pulleys in head for smooth and quiet operation
  • Full featured head with automatic quill feeds in 3 steps for boring operations
  • Precision Honed Quill Bore for tighter tolerance fit, which leads to improved accuracy when drilling and precision boring
  • Power Down Feed on quill is standard, in 3 steps .0015, .003, and .006 Inches per revolution
  • Quill is Precision Ground, then Hard Chrome Plated for even longer life

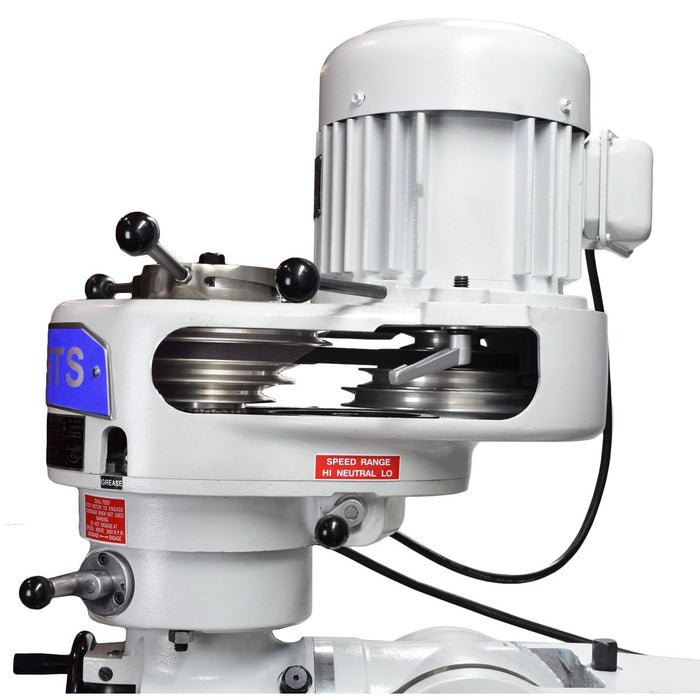

  • Available with either step pulley speed changes, or variable speeds to suit the user's preferences
  • Built in coolant sump in machine base
  • Tolerance Test Certificate included, each machine is checked for accuracy through a careful inspection process before shipment, the customer can always be sure they will receive a top quality machine that exceeds their expectations
  • Longest in class 3 YEAR WARRANTY against defective parts, including electrical (excludes normal wear items such as belts, bushings, etc)

Additional Specifications:

Base Bolt Pattern Mounting Dimensions (APPROXIMATE) 20-1/2”W X 33-1/2” L

Main Specifications

Milling Machine Type Knee Mills
Leadscrew Type Precision Ground ACME Leadscrew W/ Backlash Adjustments on X and Y Axis
Spindle Taper
Taper of the spindle
R8
Spindle to Table Maximum
Maximum distance between spindle face and table, in inches.
18 in
Spindle to Table Minimum
Minimum distance between spindle face and table, in inches.
0 in
Runout +/-
-
0.00015
Spindle Bearing Class C7
Spindle Bearing Type High Precision Angular Contact Bearings, Fully Adjustable
Table Dial Graduations 0.001"
Table Leadscrew Pitch
Number of Turns to move table 1"
5 TPI (0.200" per turn)

Travels

Mill X-Axis Travel
Maximum Left to Right travel distance along X-axis, in inches
30 in
Mill X-Axis Travel, with X-Axis Power Feed Installed
Maximum Left to Right travel distance along X-axis with power feed installed, in inches
30 in
Mill Y-Axis Travel
Maximum Front to Back travel distance along Y-axis, in inches
12 in
Mill Z-Axis Travel
Maximum Down-to-Up travel distance along Z-axis, in inches.
18 in
Quill Travel
Maximum extension of quill, in inches.
5 in

Table

X-Axis Table Length
X-axis table length, left-to-right, in inches.
50 in
Y-Axis Table Width
Y-axis table width, in inches.
9 in
T-slot size
Table T-Slot Size, in inches and metric
5/8", 16mm
Table Height Minimum
Table height from floor when fully lowered, in inches.
36 in
Table Height Maximum
Table height from floor when fully raised, in inches.
54 in

DRO Specifications

Power Requirements

Amperage
Minimum Breaker/Circuit/Outlet size required for product
20
Voltage
Voltage Rating
220V
Phase
Phase type of line power supply
1Φ , 3Φ
Power Frequency
Power line frequency compatibility, in Hz
60Hz
Horsepower
Power output of motor, in HP
3
Plug supplied
Type of electrical plug or connection
~5' Cord for direct wire or user supplied plug

Motor and Drive

Motor Type
Type of Motor
AC
Drive Type
Drive mechanism to transfer motor power to spindle
Belt Drive
Speed Adjustment
How the speed is adjusted.
Infinitely Variable , Stepped
Spindle Minimum Speed
Minimum Speed of the Spindle, in RPM
70 , 80
Spindle Maximum Speed
Maximum Speed of the Spindle, in RPM
4,200 , 5,440

Cutting Capacities

Unit Dimensions

Unit Length
Length of product in packaging, in inches
66 in
Unit Width
Width of product in packaging, in inches
66 in
Unit Height
Height of product in packaging, in inches
72 in
Unit Weight
Gross Weight of product in packaging, in lbs
2300 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
66 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
66 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
72 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
2300 lb
Shipping Class
Parcel, Freight, Flat Rate shipping class
SC-F50E
Liftgate Eligible
Is this product suitable or eligible for Liftgate Delivery Service?
No
HS Code
Harmonized System Code for customs and tariffs
8459.59
Country of Origin
Primary Country of Manufacturing Origin
China

Machine Footprint

Footprint Depth
Minimum Front-to-Back space needed for clearance of machine, in inches
51 in
Footprint Width X-Axis
Minimum Left-to-Right space needed for clearance of machine, in inches.
68 in
Footprint Height
Minimum floor-to-ceiling space for clearance of machine, in inches.
83.5 in
All small accessories ordered with machine ship at no extra charge!

Machine ships LTL Truck Freight at a flat rate of $799 in the 48 States. Shipments to Hawaii, Alaska, Puerto Rico, or internationally need to be quoted by our Sales Team.

This mill ships fully crated, crate measures 66"L x 66"W x ~72"H (Head ships flipped upside down to lower overall height)

Crating charge is included in shipping costs above, we FULLY CRATE these models before shipment, so your machine will be very well protected for shipping!

Machine ships truck freight. These mills are too heavy for Liftgate Delivery, they must be shipped to a place with a loading dock, trucking terminal, or a place where it can be unloaded by forklift.

Delivery Appointment

If you need the freight carrier to call you to schedule a delivery appointment after the machine arrives at their final terminal, but before attempting delivery of your machine, you will need to request a Delivery Appointment. This is most useful if/when you need to rent a forklift or take off work. This will add 1 day to your shipping time. Scheduling a Delivery Appointment more than 2 days from the date the freight arrives at your local terminal may incur daily storages charges that the customer will be responsible for.

Click here for Manual:  PM 950 Series V1 2023 07

Click here for optional PM DRO Manual (Pre 2022): PM DRO Manual 1-15-2018

Click here for optional PM DRO Manual  (New LCD Version): LCD Mill DRO V1 10 3 2023
