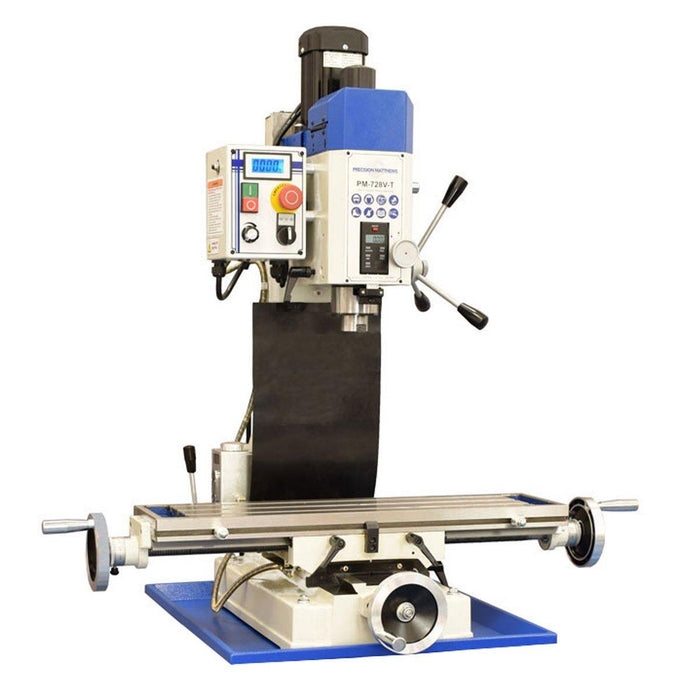

PM-728VT Ultra Precision Variable Speed Milling Machine

PM-728VT Ultra Precision Variable Speed Milling Machine

$3,699.99 - $4,899.99
$3,699.99
$3,699.99 - $4,899.99
$3,699.99
THIS MACHINE IS A STEP ABOVE ANYTHING CURRENTLY ON THE MARKET!
  • Ultra High Quality Milling Machine, Made to Exacting Standards. Nothing Else Compares To The Quality Level Of This Mill. If You Want The Best, This Is It. This machine is 100% Made in Taiwan. It Costs More, But You Get More. Much More. The Highest Level of Quality and Precision in a Bench Top Mill Available Anywhere.
  • Super Precise Way Grinding Matched with Highly Skilled Precision Fitting and Scraping of Matching Way Surfaces and Gibs Make This Machine A Step Above Anything Else On The Market
  • Larger Travels Than Comparable Models, Especially in the Y and Z Axis
  • More Weight, Approx. 370 Pounds To Work With. Easy Enough To Move, Heavy Enough To Take Serious Cuts

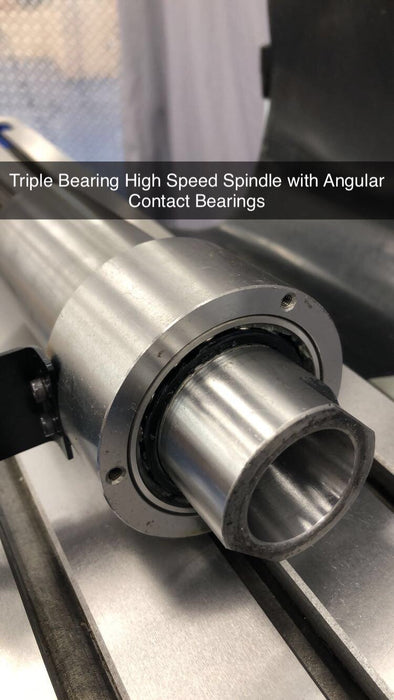

  • Ultra Precision Ground Spindle, with Triple Bearing Support
  • Spindle is Supported by Angular Contact Bearings, Which Run Precise and Stay Cool at High Speeds
  • Quill DRO Included Standard (This is for the spindle up/down movement)

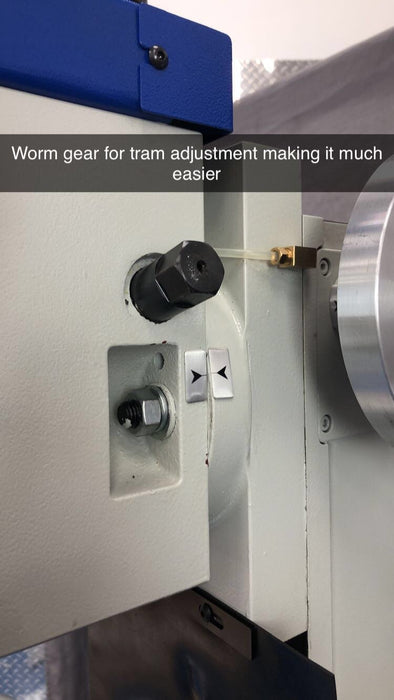

  • Worm Drive Gear for Easier Tramming of the Head
  • Enlarged Z Axis Column for Unmatched Rigidity
  • Industry Leading 5 Year Warranty
  • Click here to see Details and Specifications below

$199 Flat Rate Shipping in the 48 US States – Any accessories ordered with machine at the same time also ship free of charge! (Will automatically calculate at checkout)

Liftgate Delivery is $79 per shipment and can be added at checkout, if needed.

Make sure to make your DRO selection from the drop down menu below!

Availability:
In stock
Availability:
In stock
Availability:
In stock
SKU PM-728VT

Lead times for NEW orders as of 4/18/25:
-If showing IN STOCK when model is selected in the "Choose Machine Option" dropdown, that machine model is in our warehouse and available for shipment.
-If showing Available On Backorder, the next available shipment ETA's are listed below:
*PM-728VT - WILL UPDATE NEXT SHIPMENT ETA ONCE CURRENT STOCK SELLS OUT
*PM-728VT-w3axMX100DRO - WILL UPDATE NEXT SHIPMENT ETA ONCE CURRENT STOCK SELLS OUT
*PM-728VT-w3axMX200DRO - WILL UPDATE NEXT SHIPMENT ETA ONCE CURRENT STOCK SELLS OUT
NOTE: If machine is in stock, you will be charged in full at time of placement, no matter if ordered through our website, email, or over the phone.
-If machine is on backorder and ordered through our website, you will be charged in full at checkout.
-If machine is on backorder and ordered through email or over the phone, you can pay in full or you can place a minimum 20% Deposit Payment of the order's total at time of placement.

PM-728VT Main Features

Special Features that set this mill apart from others (BE SURE TO COMPARE THESE DIFFERENCES):

  • THIS MACHINE IS A STEP ABOVE ANYTHING CURRENTLY ON THE MARKET.
  • Ultra High Quality Milling Machine, Made to Exacting Standards. Nothing Else Compares To The Quality Level Of This Mill. If You Want The Best, This Is It. This machine is 100% Made in Taiwan. It Costs More, But You Get More. Much More. The Highest Level of Quality and Precision in a Bench Top Mill Available Anywhere.
  • Larger Travels Than Comparable Models, Especially in the Y and Z Axis
  • More Weight, Approx. 370 Pounds To Work With. Easy Enough To Move, Heavy Enough To Take Serious Cuts
  • Ultra Precision Spindle, with Triple Bearing Support. Deep Groove Ball, and Angular Contact Bearings Run Precise and Stay Cool at High Speeds

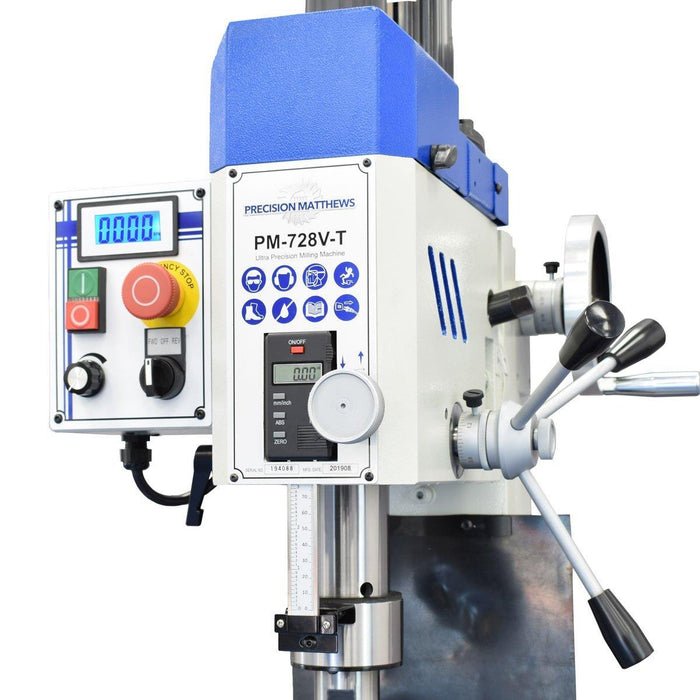

  • Quill DRO Included Standard (This is for the spindle up/down movement)

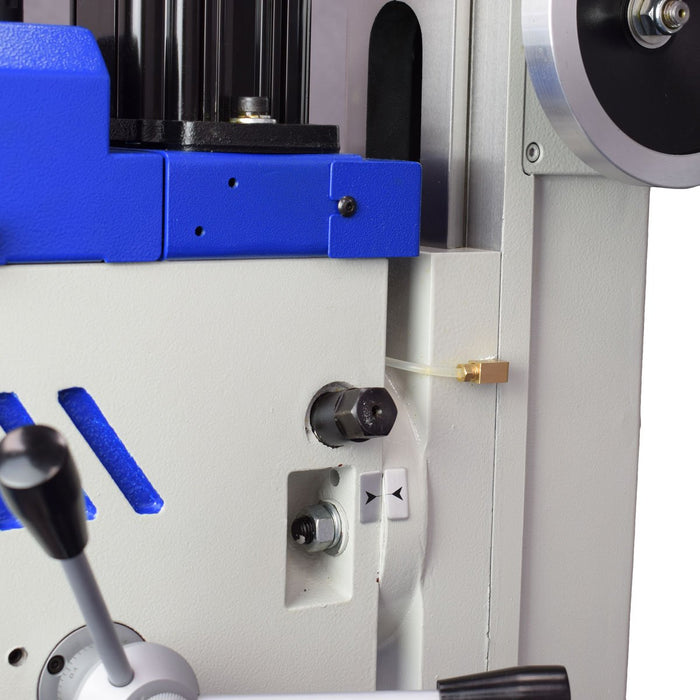

  • Features a Worm Drive Gear for Tramming Head
  • Main Z Axis Column is attached to the base with 4 bolts, with a wide, proper mounting surface for much more rigidity over other models in this size range
  • 0.001" Readings with larger dials on the X and Y axis, with true 10 Thread Per Inch Leadscrews make it easier to cut accurately - (One line on the dial is 0.001", one full turn of the handwheel is 0.100", much easier to use than those with odd metric conversions)

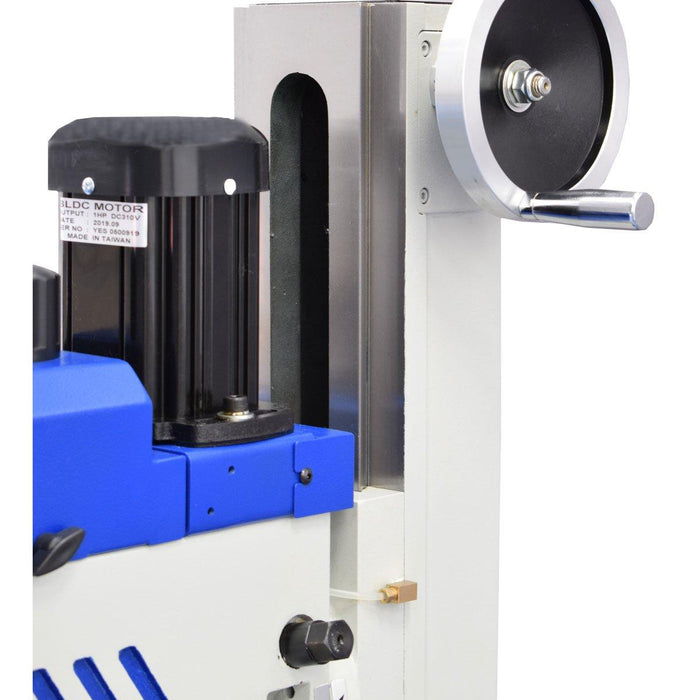

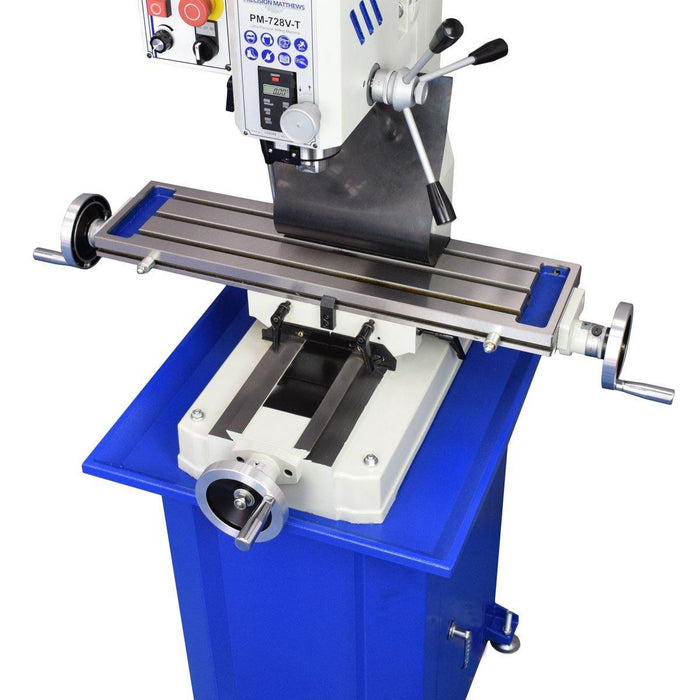

  • Highest Precision ground ways, With Mating Surfaces Hand Scraped To Fit for Much Tighter and Smoother movements - Ultimate High Precision Fit Of Ways and Gibs With This Machine

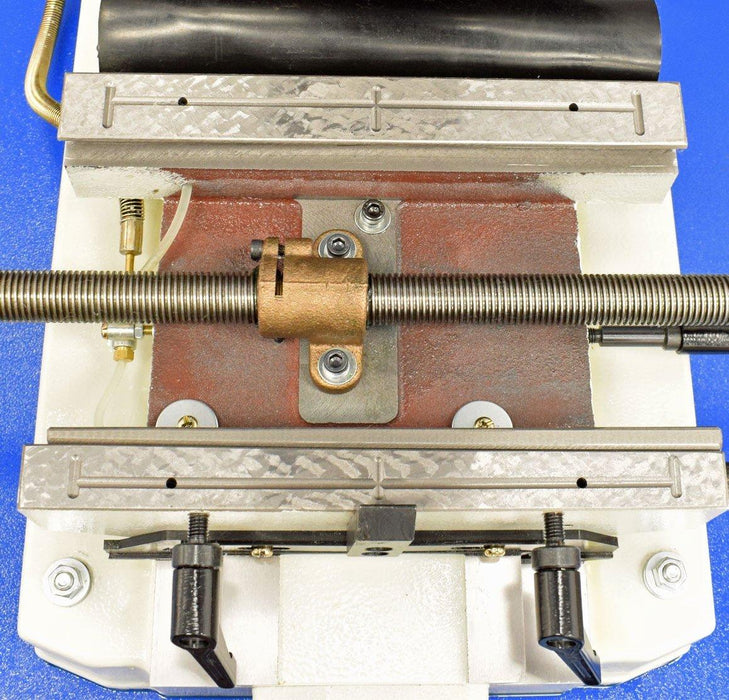

  • Thrust Bearings in leadscrew ends - not bushings - Much smoother movements and less backlash
  • Split nuts on X and Y Axis to allow for backlash adjustment

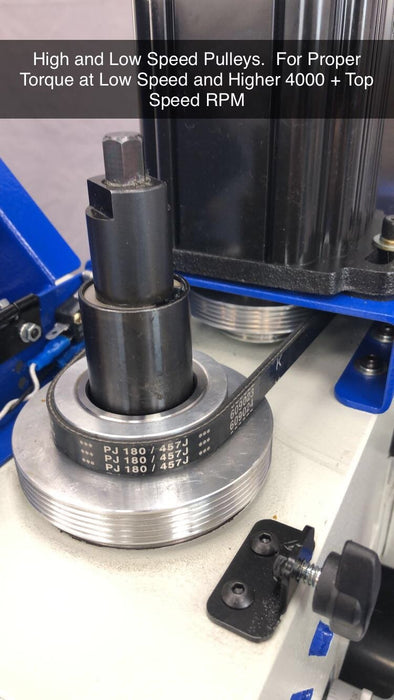

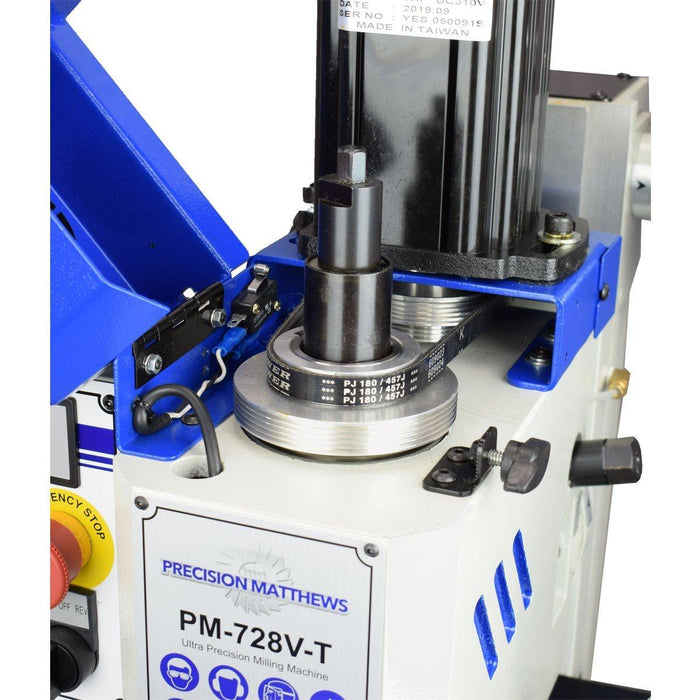

  • DC BRUSHLESS MOTOR, Variable Speed, POWERFUL, SMOOTH, and RELIABLE Belt Drive from Motor to Spindle runs MUCH quieter than others, and eliminates any failure prone plastic gears (And the hassle of changing them when stripped)
  • 5 Year Warranty, for added peace of mind

PM-728VT Standard Accessories

  • Chip Tray
  • Variable Speed with Belt Drive and Brushless DC Motor
  • Way Cover Set
  • Drawbar
  • R8 Spindle Taper
  • Quill/Spindle Depth DRO
  • Spindle Locking Wrench

PM-728VT Optional Accessories

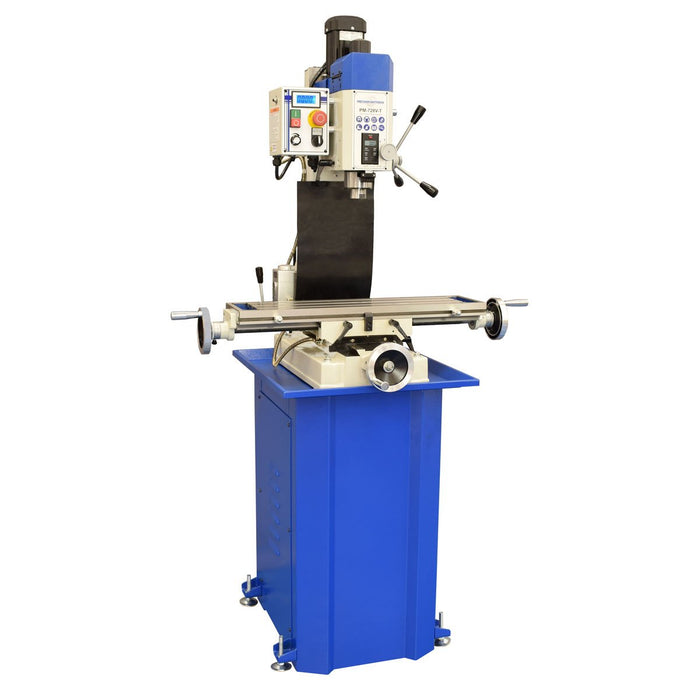

  • Stand with Leveling Feet

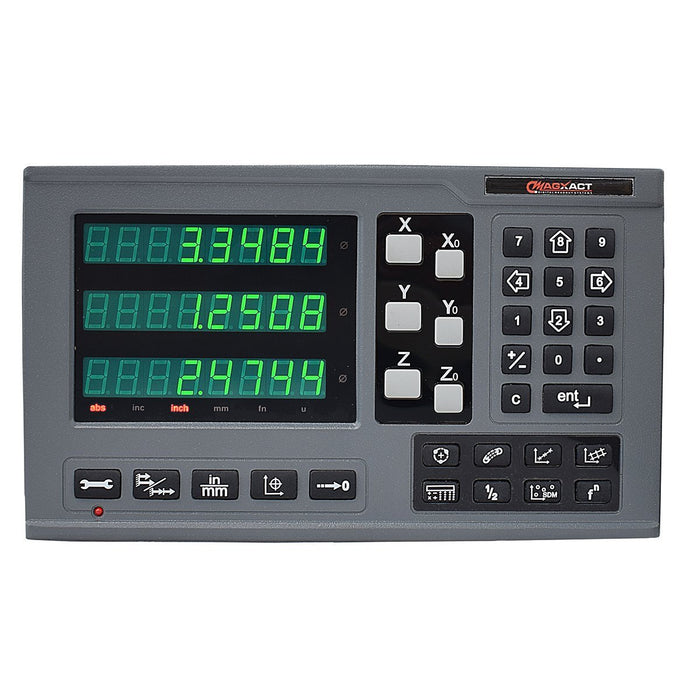

  • 3 Axis DRO Installed (Choose Either the Numerical MX-100M DRO, or LCD/Graphical MX-200M, both are Magnetic and use the same scales) Note: if a 3 axis DRO is added to the machine, the 3rd axis of the DRO reads the HEAD up and down, Not the quill, so it is not doubling up on the measurement. If you add the 3 axis DRO, now both Z Axis movements are covered, the head, and the quill)

DRO Choices:

MX-100M Numerical: MX-100M DRO

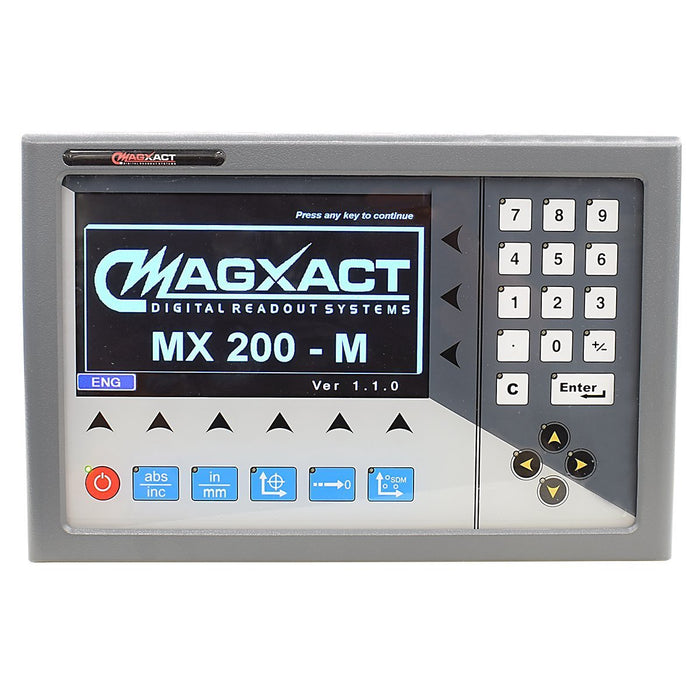

MX-200M Graphical: MX-200M DRO

Both units above use the same scales, the display is the only difference in them.

Additional Specifications

  • Bolt Mounting Pattern of Machine (Where it bolts to the stand) 10-1/8”W x 17-1/2” D, 1/2” Holes
  • Bottom of machine casting 20-3/4 Deep x 12-1/2” W – 3-1/4 High at Mounting Bolt Surface

(These links below are 3rd party links, please do not contact us with questions or support as we are not affiliated with them. Contact the vendors directly for fit, pricing, availability, technical questions, etc. These links are only for your reference, all vendors are responsible for their own products below)

Power Head Lift, Power Drawbar, Spindle Brake and Quill Stop, Videos Below, More Info Here: Priest Tools PM-728VT aftermarket accessories

Main Specifications

Milling Machine Type Bench Type Mills

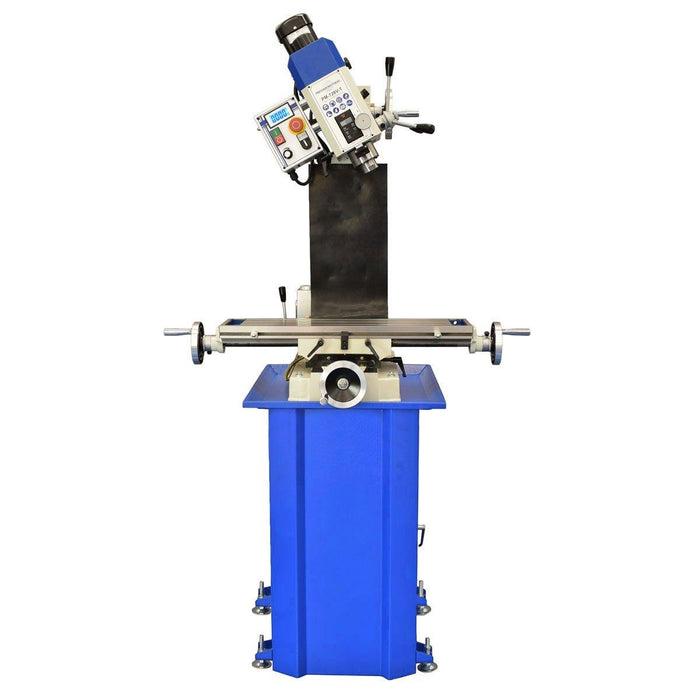

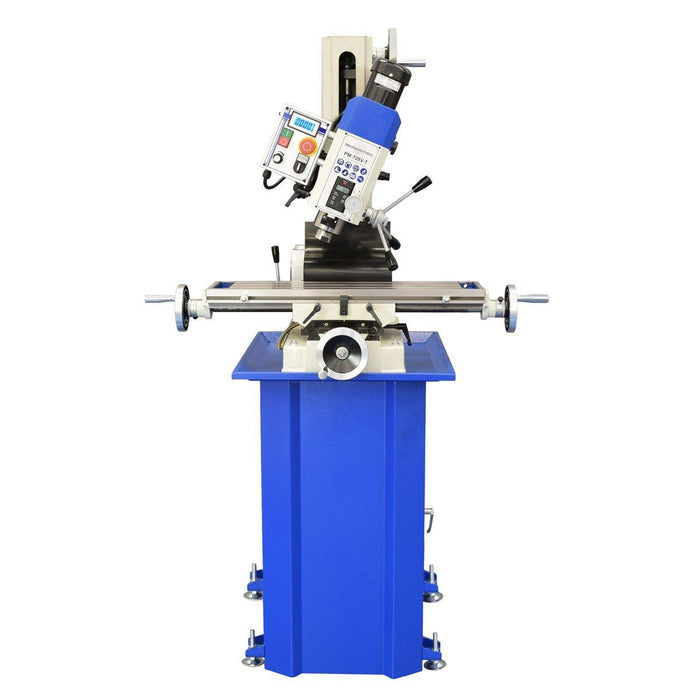

Headstock Tilt, Left to Right ±90°, with Worm Gear Movement for easier tram adjustments
Drawbar Thread
Diameter and Thread of drawbar
7/16-20
Spindle Taper
Taper of the spindle
R8
Spindle to Table Maximum
Maximum distance between spindle face and table, in inches.
16.25 in
PM Stand Height
Height of Precision Matthews Stand
32"
Quill Diameter
Diameter of the quill
2.362", 60mm
Spindle to Column Distance 8.5"
Table Dial Graduations 0.001"
Table Leadscrew Pitch
Number of Turns to move table 1"
10 TPI (0.100" per turn)
Chip Tray Dimensions 21.5" W x 24.75" D

Travels

Mill X-Axis Travel
Maximum Left to Right travel distance along X-axis, in inches
19 in
Mill Y-Axis Travel
Maximum Front to Back travel distance along Y-axis, in inches
10 in
Mill Z-Axis Travel
Maximum Down-to-Up travel distance along Z-axis, in inches.
16 in

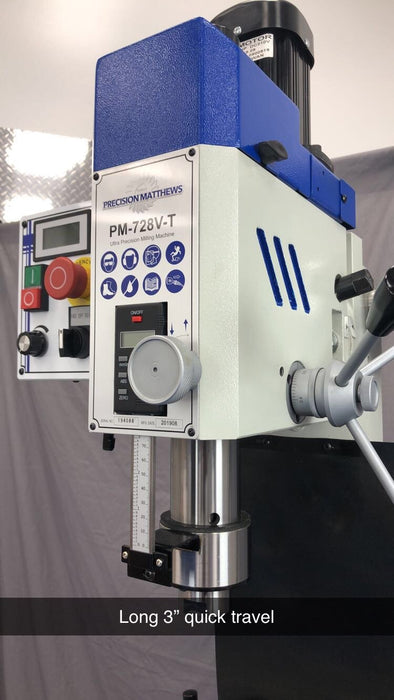

Quill Travel
Maximum extension of quill, in inches.
3 in

Table

X-Axis Table Length
X-axis table length, left-to-right, in inches.
28 in
Y-Axis Table Width
Y-axis table width, in inches.
7 in
T-slot size
Table T-Slot Size, in inches and metric
1/2", 12mm
Table Height Minimum
Table height from floor when fully lowered, in inches.
8.5 in

DRO Specifications

Power Requirements

Amperage
Minimum Breaker/Circuit/Outlet size required for product
20
Voltage
Voltage Rating
110V
Phase
Phase type of line power supply
1Φ
Power Frequency
Power line frequency compatibility, in Hz
60Hz
Horsepower
Power output of motor, in HP
1
Plug supplied
Type of electrical plug or connection
NEMA 5-15P on ~5' cord

Motor and Drive

Motor Type
Type of Motor
DC Brushless
Drive Type
Drive mechanism to transfer motor power to spindle
Belt Drive
Speed Adjustment
How the speed is adjusted.
Infinitely Variable
Spindle Minimum Speed
Minimum Speed of the Spindle, in RPM
75
Spindle Maximum Speed
Maximum Speed of the Spindle, in RPM
4,000

Cutting Capacities

Max Drilling Capacity 0.75"
Max End Milling Capacity 1"
Max Face Milling Capacity 3"

Unit Dimensions

Unit Length
Length of product in packaging, in inches
30 in
Unit Width
Width of product in packaging, in inches
29 in
Unit Height
Height of product in packaging, in inches
39 in
Unit Weight
Gross Weight of product in packaging, in lbs
410 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
34 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
34 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
42 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
440 lb
Shipping Class
Parcel, Freight, Flat Rate shipping class
SC-F20LE
Liftgate Eligible
Is this product suitable or eligible for Liftgate Delivery Service?
Yes
HS Code
Harmonized System Code for customs and tariffs
8459.69
Country of Origin
Primary Country of Manufacturing Origin
Taiwan

Machine Footprint

Footprint Depth
Minimum Front-to-Back space needed for clearance of machine, in inches
30 in
Footprint Width X-Axis
Minimum Left-to-Right space needed for clearance of machine, in inches.
41 in
Footprint Height
Minimum floor-to-ceiling space for clearance of machine, in inches.
44.5 in
Footprint Height on PM Stand
Minimum floor-to-ceiling space for clearance of machine, WITH optional stand, in inches.
76.5"
Head at Normal Working Height, No Stand
Distance between floor and top of head, without optional stand, at normal working height, in inches.
36"
All small accessories ordered with machine ship at no extra charge!

Machine ships LTL Truck Freight at a flat rate of $199 in the 48 States. Shipments to Hawaii, Alaska, Puerto Rico, or internationally need to be quoted by our Sales Team.

Flat Rate Shipping

Standard Flat Rate LTL Freight Shipping services involve a 28′-48′ tractor trailer pulling up in front of your driveway and unloading your order at the curb. This is the extent of our flat rate shipping services. Carriers will NOT back their truck up your driveway, drive their truck down a dead end street, or use their liftgate to offload your machine into the bed of your pickup or trailer. Unless you have a loading dock, forklift, material handler, or other heavy equipment with forks, you will need to add Liftgate Service for $79.

Liftgate Service (Optional)

Liftgate Delivery service will get the machine from the back of the carriers truck down to the ground and up to 25' from that offloading point, provided those 25' are paved, level, and manageable by a single person with an unpowered pallet jack. If your shop/garage threshold is more than 25' from the curb end of your driveway and you don't have your own pallet jack, you will need to add Inside Delivery Service.

You MUST have a plan for how to get your machine from the curb to your shop. If you need additional delivery services, like Inside Delivery, box truck, or flatbed with forklift delivery (available in select locations), please contact us prior to your order being shipped to allow us to arrange and charge shipping accordingly. Some, but not all carriers and locations have 26′ box trucks available, but that is not guaranteed and your delivery plan should not depend on getting a box truck.

Inside Delivery Service (Optional)

The Inside Delivery option will, in appropriate situations, cause the driver to take your freight from the offloading point at the liftgate and move it into your shop or garage, as long as the route between those two points is relatively level, paved, and manageable using a standard pallet jack. This is for flat, paved driveways that are over ~30' from the curb to the threshold of your shop/garage.

Delivery Appointment

If you need the freight carrier to call you to schedule a delivery appointment after the machine arrives at their final terminal, but before attempting delivery of your machine, you will need to request a Delivery Appointment. This is most useful if/when you need to rent a forklift or take off work. This will add 1 day to your shipping time. Scheduling a Delivery Appointment more than 2 days from the date the freight arrives at your local terminal may incur daily storages charges that the customer will be responsible for.

PM-728VT Ultra Precision Manual: PM 728VT Manual

Stand Assembly Instructions: PM-728VT Stand Assembly Instructions

MX-100M DRO manual: MagXact MX-100M Mill DRO V1 9-1-2021

MX-200M DRO Manual: MagXact MX 200M Mill V1 12 1 21

X Axis Table Feed Installation Instructions: PM 728V T Table Power Feed Install V1 9 24 20

Ultra Precision CNC Ball Screw Kit Installation Diagram: PM-728VT Ball screw kit-2021 V2

Ultra Precision CNC Ball Screw Kit Part Numbers: CNCBallScrewKit PM 728VT Part Numbers
